JETFON PC-1335 30A Power Supply with Battery Charger - Universal Power Supply for Electronics, Computers & DIY Projects - Perfect for Home, Office & Workshop Use

Product Description

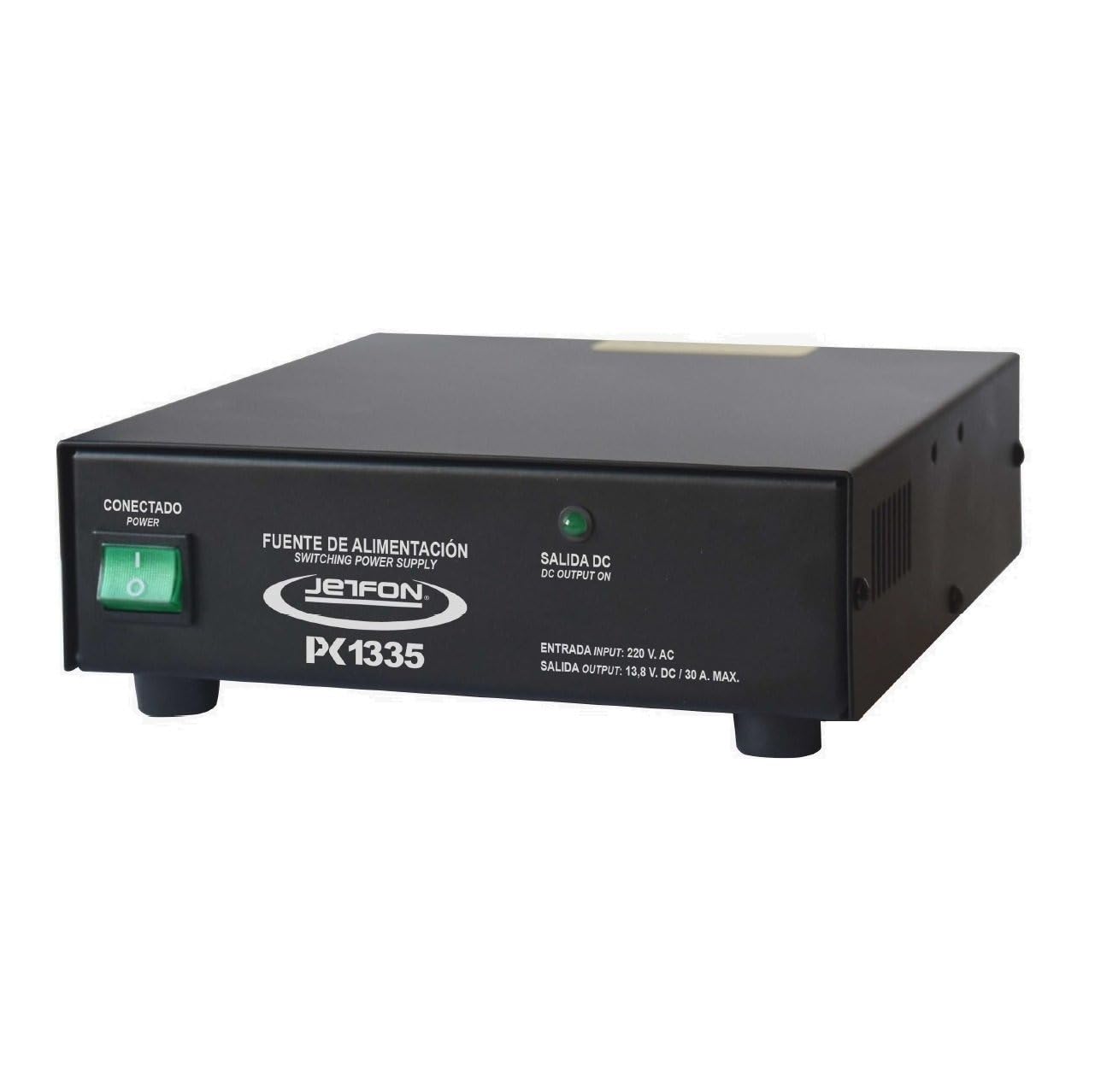

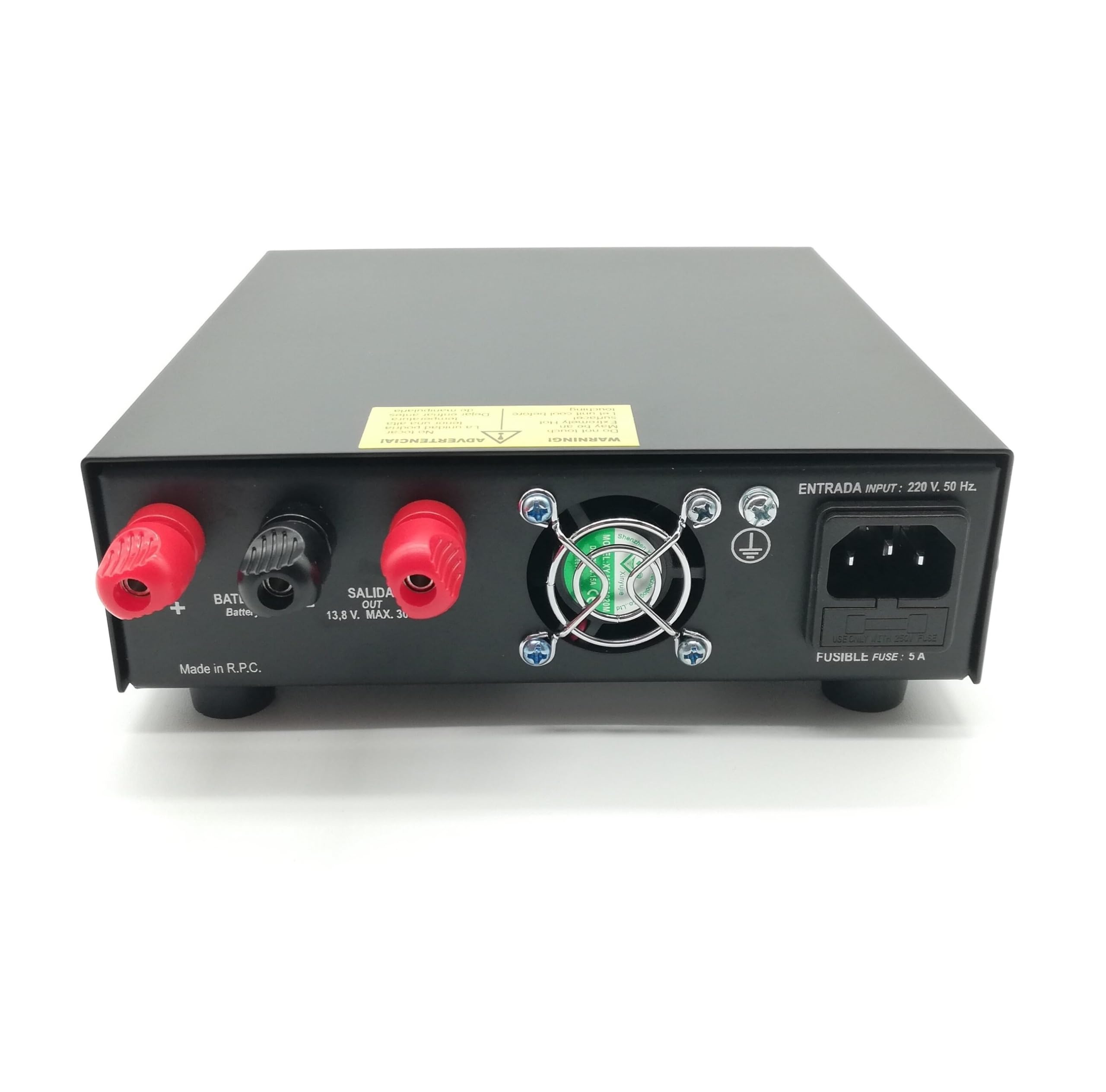

The Jetfon PC-1335 is a compact, lightweight high-performance switching power supply. It has excellent in-line and load regulation with low noise and loop level. The Jetfon PC-1335 has a 12V battery charge function (except Li-Ion) which allows you to use a backup battery in case of power failure. On the back, there are 3 terminals: 1 negative and 2 positive, which allows three different configuration modes: use the first two terminals to charge only a backup battery. Use only the last two to power a computer directly, use the three terminals to power a computer and connect a backup battery. In the case of connecting one 12V battery and one device at a time, when a 230V AC power outage occurs, the power will automatically switch to battery power mode. After the power supply is restored, the battery power mode will switch to the 230V AC power mode and the source will recharge the battery. Specifications 3 terminals: 2 positive and 1 negative terminals (common for battery charge and equipment power) AC input voltage: 230 V AC Fixed output voltage: 13.8 V ± 0.5 V Output voltage regulation: <2% Protection: short circuit, overload and over voltage Output current: 30 A (maximum) Curled heading : ≤ 10 0mVp-p Fuse: 5A Dimensions: 181 x 63 x 190 mm. Weight: 1.55kg Includes: Power source 220 V network cable, brackets with screws. Instruction manual (English language not guaranteed)
